Displays & Controllers
Clear, restrained, and intuitive. Keep your attention on the road with CAN-bus communication and IP55 weatherproofing.
COMPACT HANDLEBAR CONTROLS
CS510 & CS8010 SERIES
Compact side-mount displays engineered for intuitive thumb operation without shifting hand position. High-contrast segment and color screens ensure instant glance readability.
- CS510: For VOLANS / PEGASI Series Motor
- DS5010: For MIGIC / Hub Series Motor
- CS8010: For VOLANS / PEGASI Series Motor
- DS8010: For MIGIC / Hub Series Motor
| Parameter | CS510 / DS5010 | CS8010 / DS8010 |
|---|---|---|
| Dimensions | key: 68.5 × 41 × 24.5 mm | key: 58 × 46.2 × 45 mm, Screen: 47.5 × 63.5 × 14.6 mm |
| Handlebar diameter | φ22.2 mm | key: φ22.2 mm, Screen: φ22.2 / φ25.4 / φ31.8 mm |
| Communication | CAN | CAN |
| Screen | 1.3″ FSTN Segment code screen | 2.0″ Color screen |
| IP rating | IP55 | IP55 |
CENTER-MOUNT COCKPIT CONSOLES

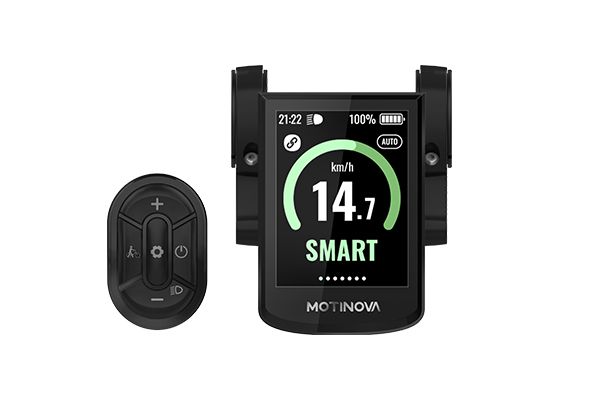

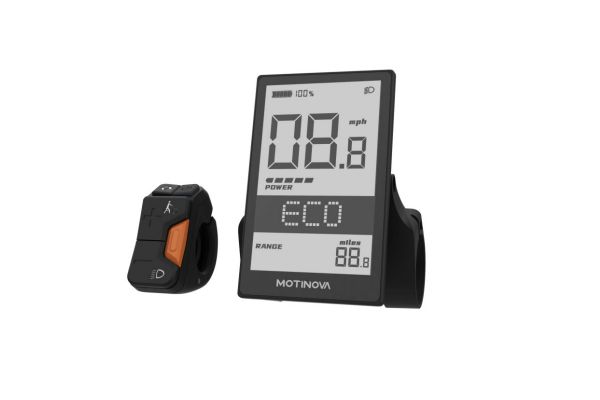

CS5040 & CS8020 SERIES
Center-mounted cockpit instruments offering broad visual area and comprehensive ride telemetry. Supports multi-diameter brackets for universal handlebar integration.
- CS5040: For VOLANS / PEGASI Series Motor
- DS5040: For MIGIC / Hub Series Motor
- CS8020: For VOLANS / PEGASI Series Motor
- DS8020: For MIGIC / Hub Series Motor
| Parameter | CS5040 / DS5040 | CS8020 / DS8020 |
|---|---|---|
| Dimensions | key: 23 × 52 × 51.6 mm, Screen: 99.6 × 62 × 15 mm | key: 50 × 32 × 46.7 mm, Screen: 86 × 59 × 24.2 mm |
| Handlebar diameter | key: φ22.2 mm, Screen: φ22.2 / φ25.4 / φ31.8 mm | key: φ22.2 mm, Screen: φ22.2 / φ25.4 / φ31.8 mm |
| Communication | CAN | CAN |
| Screen | 3.5″ FSTN Segment code screen | 2.8″ Color screen |
| IP rating | IP55 | IP55 |
MINIMALIST CONTROLS & CENTRAL SCREENS

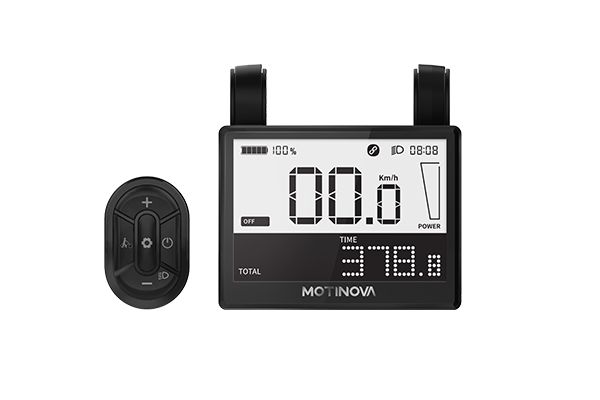

CN3010 & CS5050 SERIES
From minimalist LED grip indicators to large-format 3.5-inch split consoles, providing versatile cockpit configurations for city and trekking bikes.
- CN3010: For VOLANS / PEGASI Series Motor
- DN3010: For MIGIC / Hub Series Motor
- CS5050: For VOLANS / PEGASI Series Motor
- DS5050: For MIGIC / Hub Series Motor
| Parameter | CN3010 / DN3010 | CS5050 / DS5050 |
|---|---|---|
| Dimensions | key: 51 × 59 × 48 mm | key: 58 × 46.2 × 45 mm, Screen: 85.6 × 65 × 20.15 mm |
| Handlebar diameter | key: φ22.2 mm | key: φ22.2 mm, Screen: φ22.2 / φ25.4 / φ31.8 mm |
| Communication | CAN | CAN |
| Screen | LED | 3.5″ FSTN Segment code screen |
| IP rating | IP55 | IP55 |
